[GB] RF-8X add-ons

📅 Thời gian GB:

• Thời gian: 25/05/2026 đến 23/06/2026
• Thời gian trả dàng dự kiến: 5-6 tháng sau khi đóng GB.

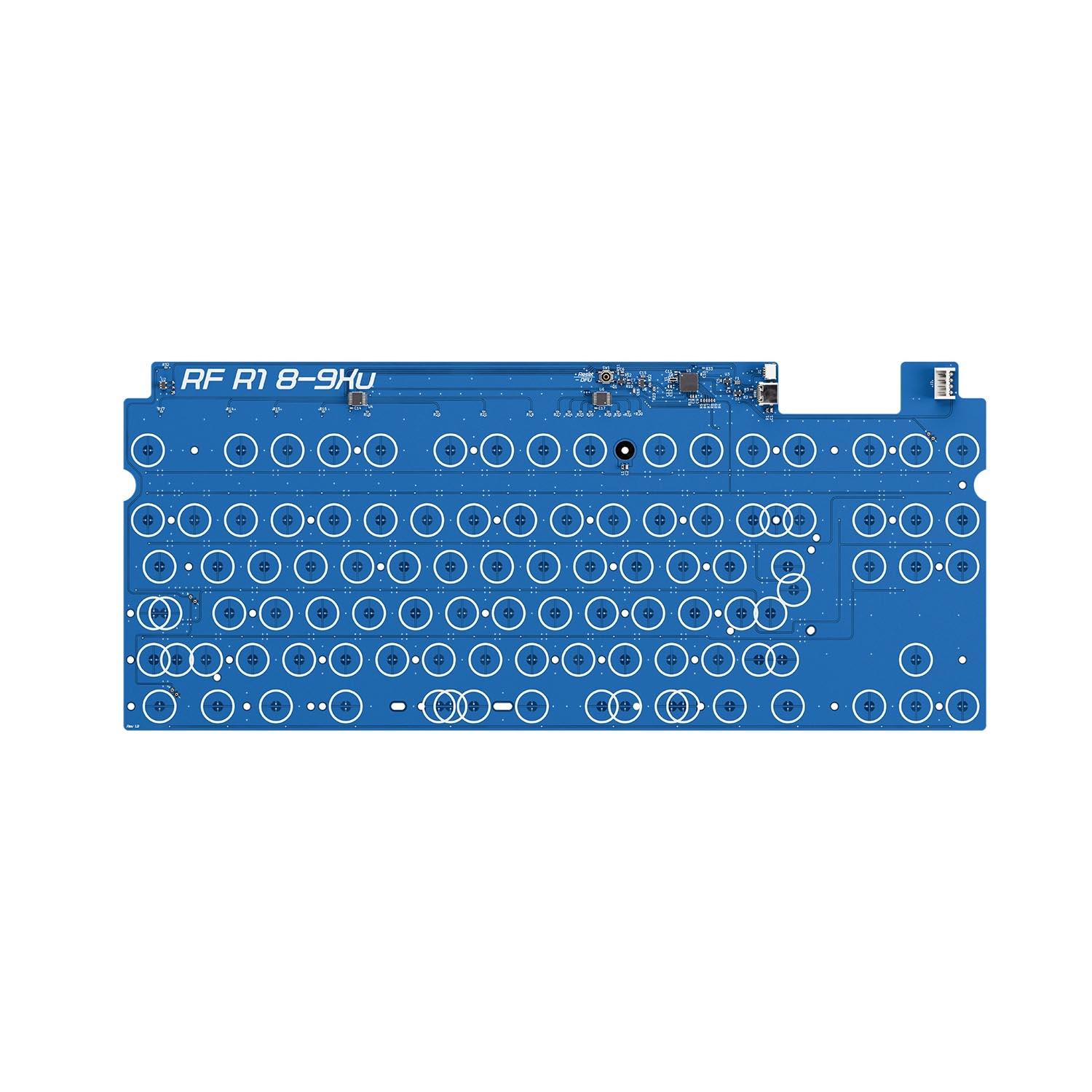

Cipulot R1 8-9Xu PCB:

• Blue solder mask
• Support for ANSI, ISO, and JIS layouts similar to 86u, 87u, 88u, and 89u
• Internal support for JST cable, USB-C cable, and OEM JST EH 2.5 4-Pin connector
• VIA support
• Dimension: 360 x 150 x 8mm

Tất cả plate được làm từ thép không gỉ độ dày 1.2mm:

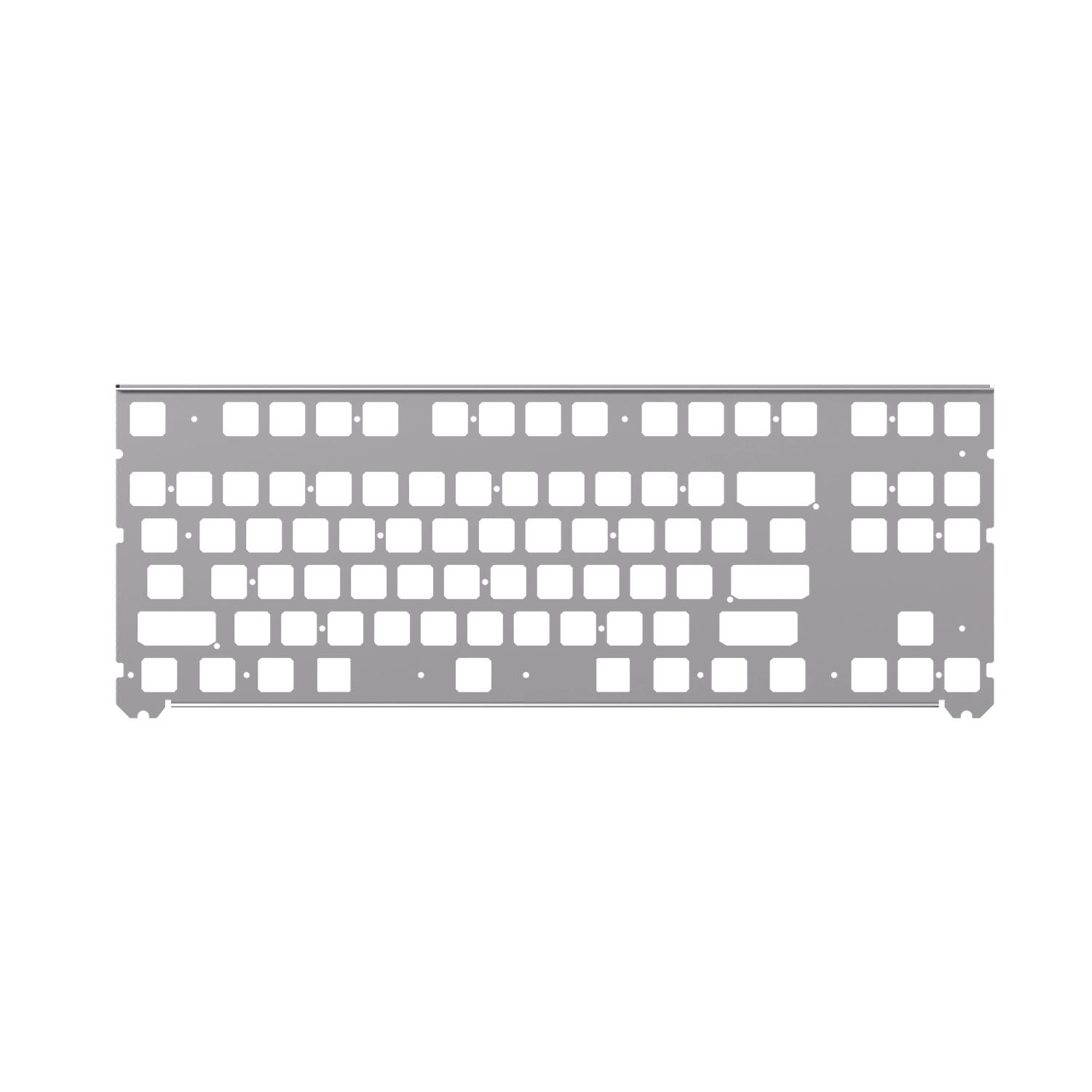

R1-86u Plate:

• ANSI TKL layout
• Support for 7u spacebar with 7u stabilizer spacing
• Bottom row is 1.5u + 1u + 1.5u + 7u + 1.5u + 1u + 1.5u
• Compatible with OEM Realforce R1 86u PCB and Cipulot R1 8-9Xu PCB
• Includes M2.5 x 8mm low profile hex screws
• Dimension: 360 x 140 x 8mm

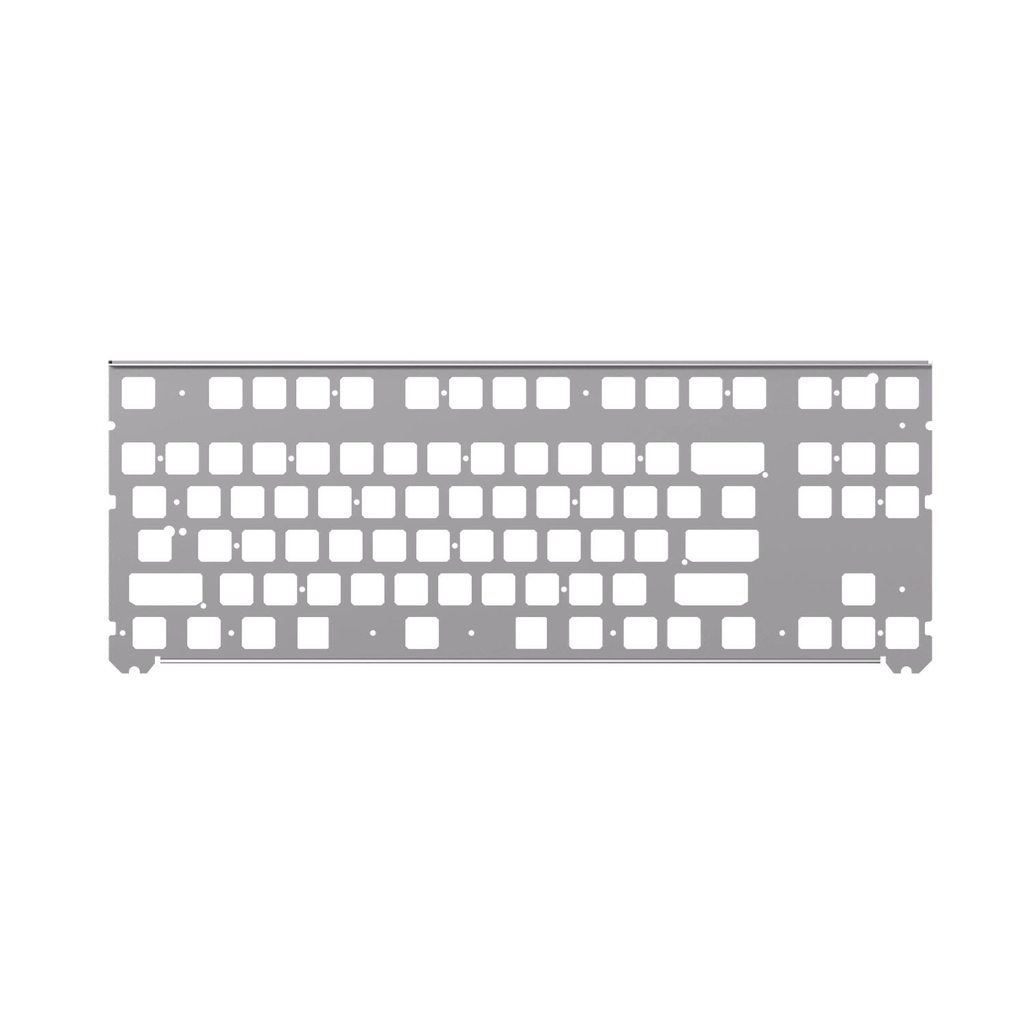

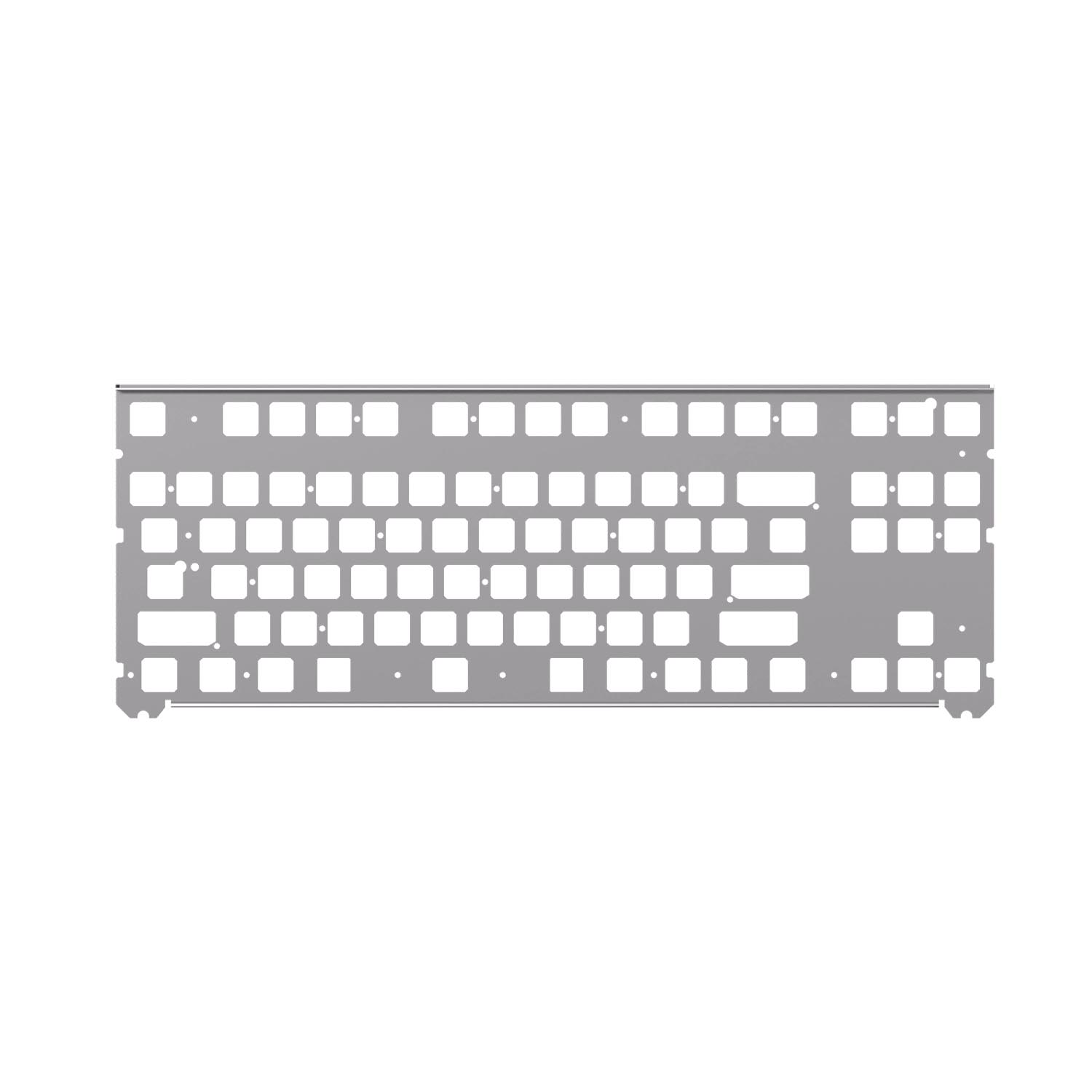

R1-87u Plate:

• ANSI TKL layout
• Support for 6u spacebar with 6u stabilizer spacing
• Bottom row is 1.5u + 1u + 1.5u + 6u + 1.5u + 1u + 1u + 1.5u
• Compatible with OEM Realforce R1 87u PCB and Cipulot R1 8-9Xu PCB
• Includes M2.5 x 8mm low profile hex screws
• Dimension: 360 x 140 x 8mm

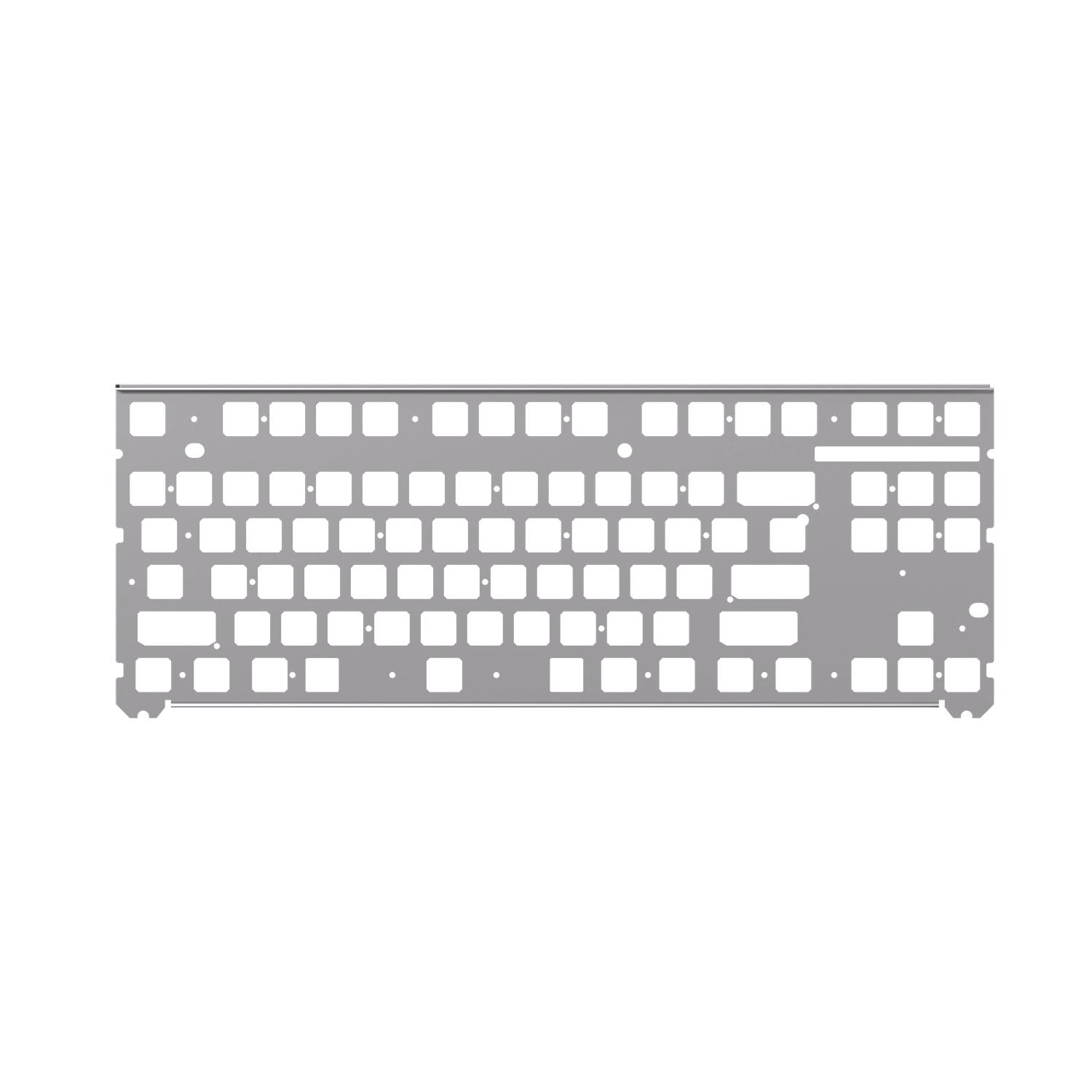

Modified R2/R3S Plate:

• ANSI TKL Layout
• Compatible with OEM Realforce R2/R3S ANSI TKL PCB and WK case ONLY
• NOT compatible with Cipulot R1 8-9Xu PCB
• Bottom row is 1.25u + 1.25u + 1.25u + 6.25u + 1.25u + 1.25u + 1.25u + 1.25u
• Dimension: 360 x 140 x 8mm

Hardware Kit

• Case screws, DB, JST cables, and rubber feet required for the build.
• Purchase this as an addition to the hardware kit provided with the keyboard case
